DETAILS
Application
| 1/8, 1/10th Buggy / Truggy, Crawler, Monster. Airplane. Boat. (EP / Nitro) |
Specifications
| Torque At 6.0V | 27.2 kg-cm / 377.8 oz-in |
| Torque At 7.4V | 32.8 kg-cm / 455.6 oz-in |
| Torque At 8.4V | 37.6 kg-cm / 522.3 oz-in |
| Speed At 6.0V | 0.15 sec / 60° |
| Speed At 7.4V | 0.13 sec / 60° |
| Speed At 8.4V | 0.11 sec / 60° |
Power Supply
| Operating Voltage Range | 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly & 2S Li-Fe ) |
Programmable Brushless Servo
| Control System | Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) |
| Programmable Digital | Yes, programmable circuit system |
| Dead Band Width | 0.001ms ( Default：1us) |
Mechanical Specifications
| Ball Bearing | Dual |
| Gear | Durable Steel Alloy Metal Gears |
| Motor | Premium Coreless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
Physical Specifications
| Dimension (mm) | 40.6 x 20.6 x 39.7 mm / 1.6 x 0.81 x 1.56 in |
| Weight (gram) | 76.5 ± 1 grams / 2.70 oz |

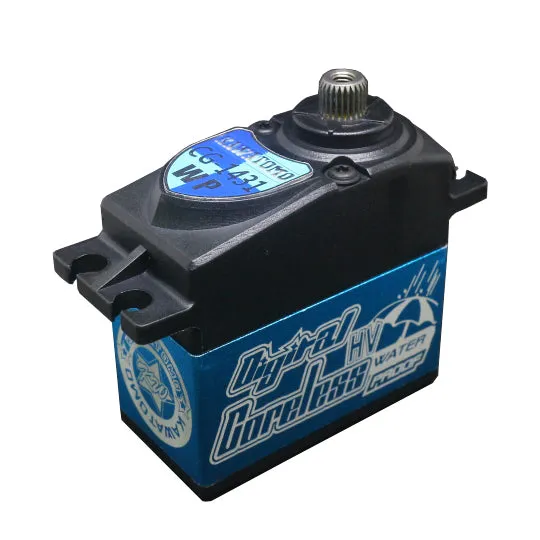

| Product Picture / Dimension Sketch |
