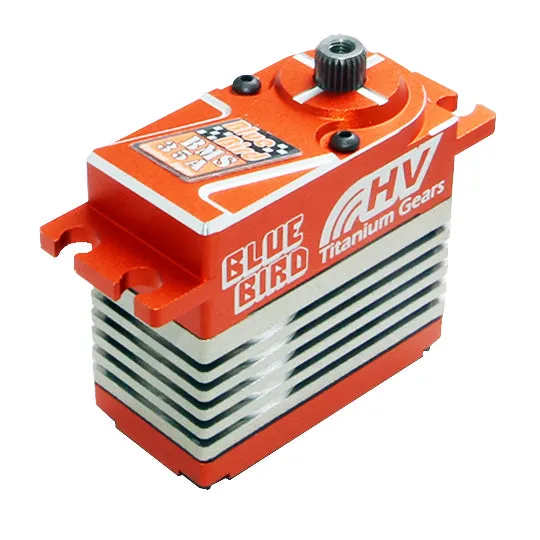

BMS-35A, HV-Digital, High Torque, Coreless, Titanium Gears
DETAILS
Application
| Car. Airplane. Heil (EP / Gas Engine) /1/6, 1/8, 1/10 Buggy / Truggy, Crawler, Monster |
Specifications
| Torque At 6.0V | 29 kg-cm / 403 oz-in |
| Torque At 7.4V | 35.5 kg-cm / 493 oz-in |
| Speed At 6.0V | 0.17 sec / 60° |
| Speed At 7.4V | 0.14 sec / 60° |
Power Supply
| Operating Voltage Range | 4.8V ~ 8.5V ( 2 cell Li-Po / 6 cell Ni-MH Compatible ) |
Standard Full Aluminum Servo
| Control System | Digital Controller |
| Dead Band Width | 0.001ms ( 1us ) |
Specifications
| Ball Bearing | Dual |
| Gear | Titanium Alloy Gears |
| Motor | Japanese Coreless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
Physical Specifications
| Dimension (mm) | 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in |
| Weight (gram) | 74 ± 1 grams / 2.61 oz |

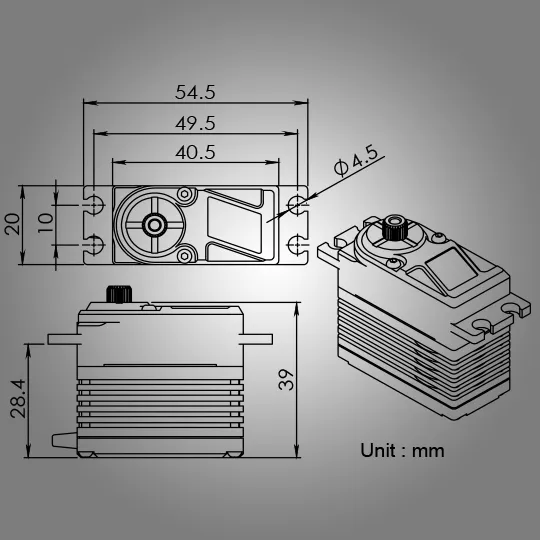

| Product Picture / Dimension Sketch |
