BLS-36A, Digital, Brushless, High Speed, High Voltage, Titanium Gears
Application
| 1/6, 1/8th Buggy, Truggy, Crawler, Monster & Airplane, Heli (EP / Gas Engine) |
Specification
| Torque At 6.0V | 28.5 kg-cm / 395.9 oz-in |
| Torque At 7.4V | 35.6 kg-cm / 494.5 oz-in |
| Torque At 8.4V | 40.5 kg-cm / 562.5 oz-in |
| Speed At 6.0V | 0.09 sec / 60° |
| Speed At 7.4V | 0.07 sec / 60° |
| Speed At 8.4V | 0.06 sec / 60° |
Power Supply
| Operating Voltage Range | 6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe ) |
Standard Full Aluminum Servo
| Control System | Digital Controller / 12-Bits ( 4096 Steps ) |
| Dead Band Width | 0.001ms ( 1us ) |
Mechanical Specifications
| Ball Bearing | Dual |
| Gear | Titanium Alloy Gears |
| Motor | Premium Brushless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
Physical Specifications
| Dimension (mm) | 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in |
| Weight (gram) | 81.5 ± 1 grams / 2.87 oz |

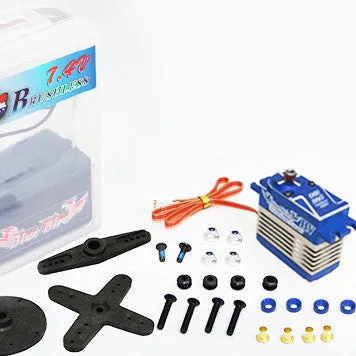

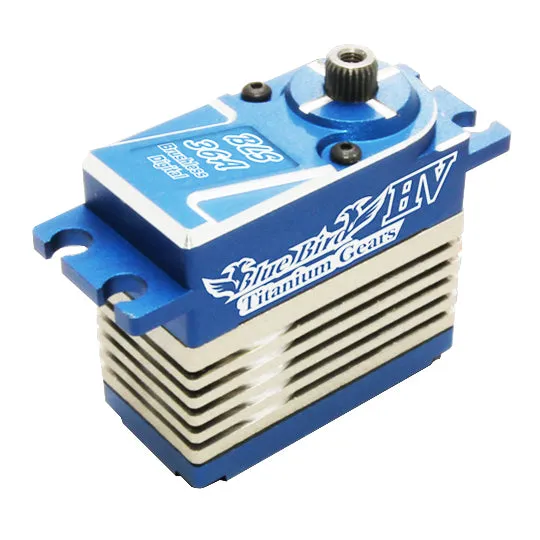

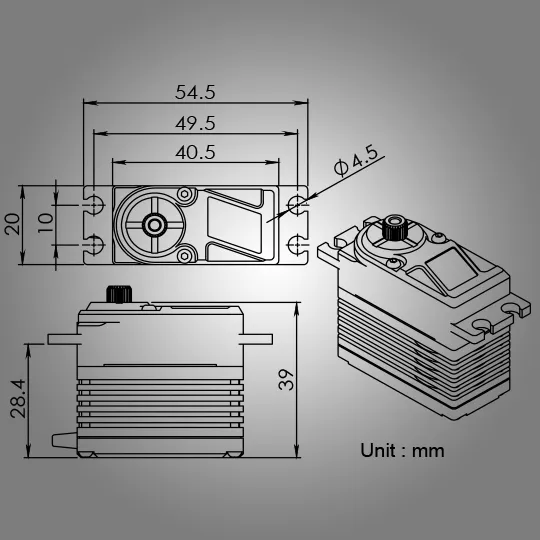

| Product Picture / Dimension Sketch | |
